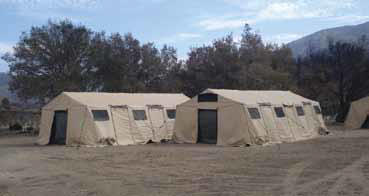

The Model 307 provides an interior clear

span of 18 wide by 35 long with 8 entry

and egress points. This shelter will house

between 14-18 personnel. It is also ideal

for brigade- and regiment-size command

and control, medical, communication, and

logistics operations.

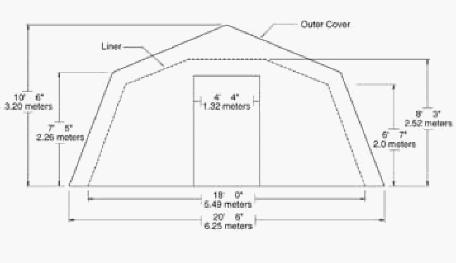

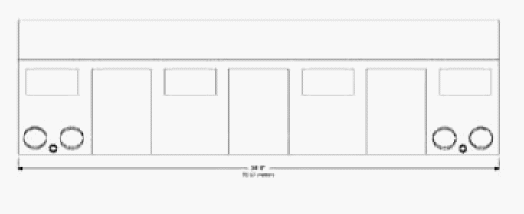

Specifications 307 Shelter

Interior Dimensions

Floor Space 18 x 35 ft 5.49 x 10.67 m

Area 630 ft2 58.5 m2

Packed Dimensions

Package 1* 63 x 46 x 29 160 cm x 117 cm x 74 cm

Package 2** 63 x 32 x 23 160 cm x 81 cm x 58 cm

Weight

Package 1* 474 lbs 215 kg

Package 2** 240 lbs 109 kg

Total Shelter Weight 714 lbs 324 kg

Total Package 1 & 2 785 lbs 356 kg

Set-Up

Time 10-16 min

Personnel 6 each
