AIR BEAM TENT

Mfg By HDT GLOBAL



HDT’s patented high-pressure AirBeam technology resists bending. Among the key advantages of AirBeam shelter systems are strength and

durability, rapid deployment, and minimal manpower requirements. A small logistics chain and parts count also contribute to a low lifecycle cost for

each unit. The durability of these shelters has been demonstrated in over 150 consecutive AirBeam shelter erection-strike cycles without incident.

The AirBeam series shelters are available in three 21' (6.4 m) length and four 32' (9.8 m) length models with identical 10" (25.4 cm) diameter,

20' (6.1 m) clear span AirBeam supports. AirBeam shelters offer an abrasion-resistant, water repellent and ultraviolet (UV) resistant cover

assembly with integral floor, an integrated inflation system, external bracing, and stakes.

Standard features of the AirBeam shelter include environmental control unit (ECU) duct openings, a removable lightweight thermal liner with an

air distribution plenum, and integrated hanging straps for lights and other accessories. Several window and door configurations are available,

including end panel and side panel personnel doors, cargo doors, vehicle boot kits, TRICON/ISO container boot kits, and litter airlock interfaces.

With the addition of an optional “complexing kit,” AirBeam shelters can be complexed together; end-to-end, side-to-side or side-to-end.

To erect the AirBeam, the shelter is laid out and staked to the ground at just four anchor positions. The AirBeams are then inflated simultaneously

using a commercial air compressor. Two to three people can deploy the shelter in less than fifteen minutes. The shelter is deployed and struck

with the prepositioned inflation hoses.

HDT’s AirBeam Shelters are the most advanced tactical shelters of their kind. Standard models range in size from 430 – 640 square feet

(39.9 – 59.5 m2) and are offered in a variety of configurations. Their ease-of-use, rapid deployment, and strike-time capabilities meet or

exceed all US Military requirements for a general-purpose field tent. Additionally, the US Army has selected the HDT AirBeam Shelter (Air

Supported TEMPER Types) for Force Provider, their premier base camp.

Key Features

AirBeam supports three (3) beams for 2021 models / four (4) beams for 2032 models

Cover with integral floor

Personnel doors with TEMPER vestibule adapter walls

Liner with light strap

Air distribution plenum

Two (2) electrical wiring harnesses

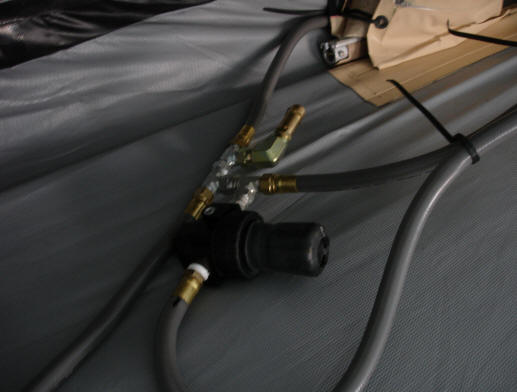

Inflation assembly (does not include compressor)

Purge vacuum, stake kit, sledge hammer, bracing kit, and repair kit

Transport cover



MODEL 2032







These are able to be connected with TEMPER, Frame,

and Modular tents via the vestibules.



SCROLL DOWN FURTHER TO SEE ALL THE PICTURES

SALES@CALARMY.COM

CALL FOR MORE DETAILS 1-866-560-1285

Patented Technology

HDT’s patented high-pressure AirBeam technology resists bending. Among the key advantages of AirBeam shelter systems are strength and durability, rapid deployment, and minimal manpower requirements.

HDT’s AirBeam Shelters are the most advanced tactical shelters of their kind.  Their ease of-use, rapid deployment, and strike-time capabilities meet or exceed all US Military requirements for a general-purpose field tent.

Product Description

AirBeam supports. AirBeam shelters offer an abrasion-resistant, water repellent and ultraviolet (UV) resistant cover assembly with integral floor, an integrated inflation system, external bracing, and stakes.



BELOW IS A SAMPLE OF SHORTER VERSION AIRBEAM TENT BY HDT GLOBAL































                                                              -CALL TODAY FOR A FREE SHIPPING QUOTE-
