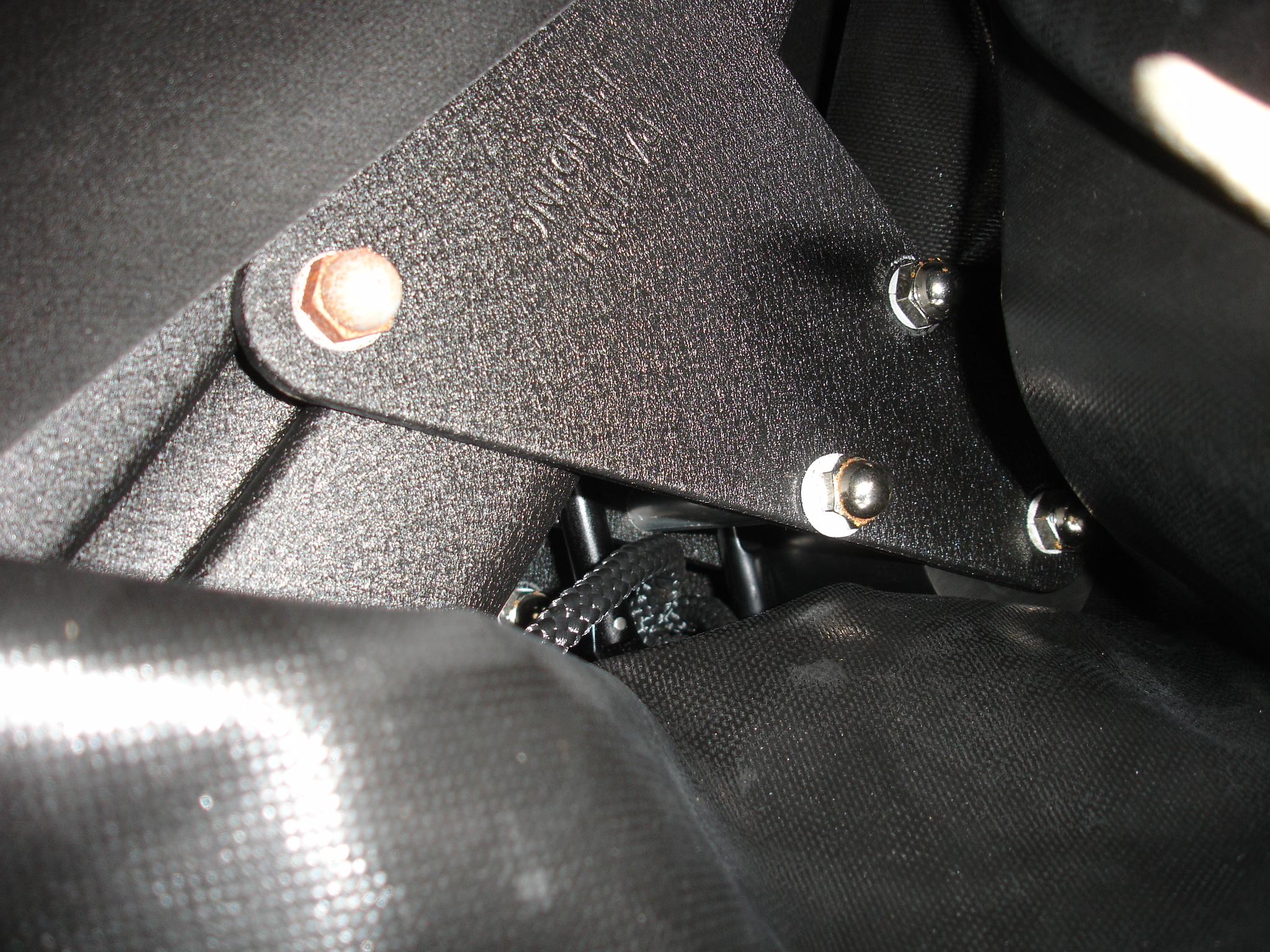

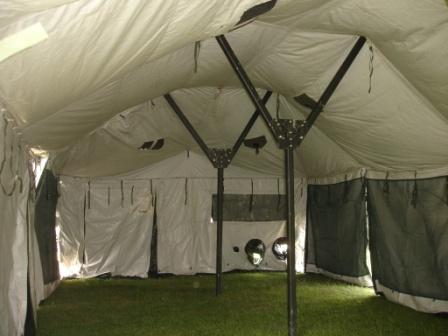

--NEW INTERNAL FRAME--

               ONLY 1 Medium and Large Available

















NSN#   Desert Tan:
NSN#   Green:

8340-01-491-1507
8340-01-456-3633

8340-01-491-1515
8340-01-456-3628

8340-01-491-1479
8340-01-456-3674





Specifications:

SMALL

Medium

Large





Floor Area:

324 sq. ft.

648 sq. ft.

972 sq. ft.





Eave Height:

7 ft.

7 ft.

7 ft.





Interior Volume:

2268 cu. ft.

4536 cu. ft.

6804 cu. ft.





Weight (tent, poles, stakes, wrappers):

432 lbs.

736 lbs.

1027 lbs.





Length:

18 ft.

36 ft.

54 ft.





Height:

11 ft. 5 in.

11 ft. 5 in.

11 ft. 5 in.





Minimum Eave Width:

18 ft.

18 ft.

18 ft.







No parts longer than 96 inches when configured for transport and fits into an ISO container (90" x 90" x 234"), into a TRICON container (90" x 90" x 72") or on a pallet (84" x 104" x 96")



Rain -

Will not pool water and will withstand a minimum of one inch per hour for a period of three hours and wind blown rain at horizontal wind speeds of 35 mph



Humidity -

Is not affected by ambient humidity between 0 and 100% relative humidity



Wind Load -

Can be assembled in winds of 25 mph, when fully erected withstands a steady wind of 55 mph for 30 minutes and wind gusts of 65 mph in three second durations from any direction



Snow Load -

Passes test load of 10 lbs. per square foot for 12 hours



Sunlight -

Withstands exposure to direct sunlight for 18 months and tolerates temperatures up to 160F
