LIGHTWEIGHT
MAINTENANCE ENCLOSURE

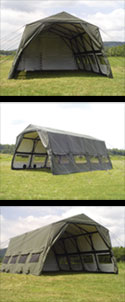

The LME is a frame supported lightweight shelter designed to provide
units with a covered facility to conduct tactical maintenance
operations. The LME is a modification of the Tent, Extendable, Modular,
PERsonnel (TEMPER) where extensions are added to the tent frame to add
the height needed for enclosure of tactical
vehicle
and equipment. The end walls have been modified with sliding fabric
doors permitting total enclosure during conditions of extreme weather or
blackout. The LME has 18-inch diameter duct openings in each of the 16
ft. intermediate fabric sections located below the windows. The U.S.
Army and U.S. Marine Corps have adopted the LME as their standard
maintenance shelter.
LME (Type I) LIN T49947: NSN 8340-01-456-3673 (Type
I) Technical Manual TM 10-5410-284-13&P. Operators Unit and Direct
Support Maintenance Manual, Including Repair Parts and Special Tools
List.
The LME has successfully completed military durability,
snow and wind loads performed by the US Army Aberdeen Test Center.
SNOW LOAD |
10lbs / ft2
for 12 hours |
WIND
LOAD |
55 mph |
WIND GUST
|
65 mph |
SET UP
|
45 minutes |
CREW SIZE |
12 soldiers |
TRANSPORTABILITY |
463L Pallet |
DIMENSIONS:
Floor Area 768 Sq. Ft.
Eave Height: 12 Ft
Weight: 1,435 Lbs
Length: 32 Ft
Height: 15 Ft 6 In
Packed Volume: 108 cubic feet
|
POWER
DISTRIBUTION BOX FEATURES:
Three (3) 20 AMP 120VAC circuits and one (1) 10
AMP 120VAC circuit of lights only.
Designed to be used with a cable of 25 to 50 feet in length. Military
cable type CO-04-MFG 4/8 having four (4) conductors of number eight (8)
wire size may be used or the commercial equivalent.
Flexible, medium duty commercial type SO having four (4) conductors of
wire size number 8 is suitable to connect the PDB to the load terminals
for the electric power generator.
Three (3) 20A Ground Fault Duplex receptacles for use as utility
receptacles
One (1) 10A Ground Fault Duplex receptacle for use with lights only
LIGHT SET
FEATURES:
Light operates on a voltage of 120 plus or minus 5 volts alternating
current at 50 to 60 Hertz.
The input current drawn per light assembly is a maximum of 0.7 amps
with a minimum power factor of 0.07.
Lights are capable of interconnecting a string of up to 12 lights
maximum. Each light operates independently of the through power circuit.
Light assembly is capable of withstanding 1000 volts AC, 60 Hz between
supply terminals and with ground lead grounded.
Light Illumination: Illumination greater than 140 foot-candles at a
distance of 18 from the center of the light.
The lights comply with the RE102 Electric Field 2 MHz to GHz test
requirements IAW MIL-STD-461D Requirements for the Control of
Electromagnetic Interference Emissions and Susceptibility.
The lights comply with Method CE102 Power Leads 10 kHz to 10 MHz IAW
MIL-STD-462D for the Measurement of Electromagnetic Interference
Characteristics.
CLASSIFICATION:
Type 1: Army, Marine Corps
